    JBOSS JNDI ERROR: Could not find datasource: ccib0Data

    Francesco Bonavia Newbie

      Hi to all,



      I'm trying to deploy a web application called "CibAudit" using a JNDI connection in hibernate with JBOSS 5.1





      First of all I post you some files of my project:





          *******************************************************************************

          "WEB.XML"

         <?xml version="1.0" encoding="iso-8859-1"?>





         <!DOCTYPE web-app PUBLIC "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN" "http://java.sun.com/dtd/web-app_2_3.dtd">

         <web-app>

          <display-name>Cibaudit Web Application</display-name>





          <servlet>

                          <servlet-name>cibaudit</servlet-name>

                          <servlet-class>com.sanpaolo.cibaudit.servlet.CibAuditServlet</servlet-class>

                </servlet>







                 <servlet>

                          <servlet-name>ShowConsuntivi</servlet-name>

                          <servlet-class>com.sanpaolo.cibaudit.servlet.ShowConsuntiviServlet</servlet-class>

                </servlet>







                <servlet>

                          <servlet-name>ShowBudget</servlet-name>

                          <servlet-class>com.sanpaolo.cibaudit.servlet.ShowBudgetServlet</servlet-class>

                </servlet>



                <servlet>

                          <servlet-name>ShowHome</servlet-name>

                          <servlet-class>com.sanpaolo.cibaudit.servlet.ShowHomeServlet</servlet-class>

                </servlet>



                <servlet>

                          <servlet-name>ConsRicerca</servlet-name>

                          <servlet-class>com.sanpaolo.cibaudit.servlet.ConsRicercaServlet</servlet-class>

                </servlet>





                <servlet>

                          <servlet-name>ConsInvio</servlet-name>

                          <servlet-class>com.sanpaolo.cibaudit.servlet.ConsInvioServlet</servlet-class>

                </servlet>







              <servlet>

                          <servlet-name>BudgetRicerca</servlet-name>

                          <servlet-class>com.sanpaolo.cibaudit.servlet.BudgetRicercaServlet</servlet-class>

                </servlet>



                <servlet>

                          <servlet-name>BudgetRevAuto</servlet-name>

                          <servlet-class>com.sanpaolo.cibaudit.servlet.BudgetRevAutoServlet</servlet-class>

                </servlet>







                <servlet>

                          <servlet-name>BudgetRevPunt</servlet-name>

                          <servlet-class>com.sanpaolo.cibaudit.servlet.BudgetRevPuntServlet</servlet-class>

                </servlet>







                <servlet>

                          <servlet-name>ConsLoadRettifica</servlet-name>

                          <servlet-class>com.sanpaolo.cibaudit.servlet.ConsLoadRettificaServlet</servlet-class>

                </servlet>







                <servlet>

                          <servlet-name>SearchConsRettifica</servlet-name>

                          <servlet-class>com.sanpaolo.cibaudit.servlet.SearchConsRettificaServlet</servlet-class>

                </servlet>







                <servlet>

                          <servlet-name>SearchBudgetRettifica</servlet-name>

                          <servlet-class>com.sanpaolo.cibaudit.servlet.SearchBudgetRettificaServlet</servlet-class>

                </servlet>







                <servlet>

                          <servlet-name>BudgetLoadRevPunt</servlet-name>

                          <servlet-class>com.sanpaolo.cibaudit.servlet.BudgetLoadRevPuntServlet</servlet-class>

                </servlet>













                <servlet>

                          <servlet-name>BudgetLoadRevAuto</servlet-name>

                          <servlet-class>com.sanpaolo.cibaudit.servlet.BudgetLoadRevAutoServlet</servlet-class>

                </servlet>





                <servlet>

                          <servlet-name>LoginPrepare</servlet-name>

                          <servlet-class>com.sanpaolo.cibaudit.servlet.login.LoginPrepareServlet</servlet-class>

                </servlet>









                <servlet>

                          <servlet-name>Login</servlet-name>

                          <servlet-class>com.sanpaolo.cibaudit.servlet.login.LoginServlet</servlet-class>

                </servlet>









                <servlet>

                          <servlet-name>LoginBack</servlet-name>

                          <servlet-class>com.sanpaolo.cibaudit.servlet.LoginBackServlet</servlet-class>

                </servlet>



                <servlet-mapping>

                          <servlet-name>SearchBudgetRettifica</servlet-name>

                          <url-pattern>/SearchBudgetRettifica.do</url-pattern>

                </servlet-mapping>

                <servlet-mapping>

                          <servlet-name>LoginBack</servlet-name>

                          <url-pattern>/security/LoginBack.do</url-pattern>

                </servlet-mapping>

                <servlet-mapping>

                          <servlet-name>Login</servlet-name>

                          <url-pattern>/login/Login.do</url-pattern>

                </servlet-mapping>

                <servlet-mapping>

                          <servlet-name>LoginPrepare</servlet-name>

                          <url-pattern>/login/LoginPrepare.do</url-pattern>

                </servlet-mapping>

                <servlet-mapping>

                          <servlet-name>BudgetLoadRevAuto</servlet-name>

                          <url-pattern>/BudgetLoadRevAuto.do</url-pattern>

                </servlet-mapping>

                <servlet-mapping>

                          <servlet-name>BudgetLoadRevPunt</servlet-name>

                          <url-pattern>/BudgetLoadRevPunt.do</url-pattern>

                </servlet-mapping>

                <servlet-mapping>

                          <servlet-name>SearchConsRettifica</servlet-name>

                          <url-pattern>/SearchConsRettifica.do</url-pattern>

                </servlet-mapping>

                <servlet-mapping>

                          <servlet-name>ConsLoadRettifica</servlet-name>

                          <url-pattern>/ConsLoadRettifica.do</url-pattern>

                </servlet-mapping>

                <servlet-mapping>

                          <servlet-name>BudgetRevPunt</servlet-name>

                          <url-pattern>/BudgetRevPunt.do</url-pattern>

                </servlet-mapping>

                <servlet-mapping>

                          <servlet-name>BudgetRevAuto</servlet-name>

                          <url-pattern>/BudgetRevAuto.do</url-pattern>

                </servlet-mapping>

                <servlet-mapping>

                          <servlet-name>BudgetRicerca</servlet-name>

                          <url-pattern>/BudgetRicerca.do</url-pattern>

                </servlet-mapping>

                <servlet-mapping>

                          <servlet-name>ShowBudget</servlet-name>

                          <url-pattern>/ShowBudget.do</url-pattern>

                </servlet-mapping>

                <servlet-mapping>

                          <servlet-name>ShowHome</servlet-name>

                          <url-pattern>/ShowHome.do</url-pattern>

                </servlet-mapping>

                <servlet-mapping>

                          <servlet-name>ConsRicerca</servlet-name>

                          <url-pattern>/ConsRicerca.do</url-pattern>

                </servlet-mapping>

                <servlet-mapping>

                          <servlet-name>ConsInvio</servlet-name>

                          <url-pattern>/ConsInvio.do</url-pattern>

                </servlet-mapping>

                <servlet-mapping>

                          <servlet-name>cibaudit</servlet-name>

                          <url-pattern>/Enter.do</url-pattern>

                </servlet-mapping>

                <servlet-mapping>

                          <servlet-name>ShowConsuntivi</servlet-name>

                          <url-pattern>/ShowConsuntivi.do</url-pattern>

                </servlet-mapping>



          <session-config>

              <session-timeout>60</session-timeout>

          </session-config>



          <welcome-file-list>

              <welcome-file>index.jsp</welcome-file>

          </welcome-file-list>





          <taglib>

              <taglib-uri>/WEB-INF/taglib/jsptabcontrol.tld</taglib-uri>

              <taglib-location>/WEB-INF/taglib/jsptabcontrol.tld</taglib-location>

          </taglib>



          <taglib>

              <taglib-uri>/WEB-INF/taglib/jsptabcontrol-el.tld</taglib-uri>

              <taglib-location>/WEB-INF/taglib/jsptabcontrol-el.tld</taglib-location>

          </taglib>





          <resource-ref>

              <description>Data Source</description>

              <res-ref-name>ccib0Data</res-ref-name>

              <res-type>javax.sql.DataSource</res-type>

              <res-auth>Container</res-auth>

         </resource-ref>





         </web-app>





          ***************************************************************************



          Then this the hibernate.cfg.xml file where I set my datasource name.

          Do I need to use jdbc/ccib0Data or only ccib0Data?

          "hibernate.cfg.xml"





          <?xml version='1.0' encoding='utf-8'?>

          <!DOCTYPE hibernate-configuration PUBLIC

          "-//Hibernate/Hibernate Configuration DTD 3.0//EN"

           "http://hibernate.sourceforge.net/hibernate-configuration-3.0.dtd">





           <hibernate-configuration>



          <session-factory>



          <property name="connection.datasource">ccib0Data</property>





          <property name="hibernate.current_session_context_class">org.hibernate.context.ThreadLocalSessionContext</property>



          <property name="hibernate.jdbc.batch_size">30</property>

          <property name="hibernate.show_sql">false</property>





          <property name="hibernate.dialect">org.hibernate.dialect.Oracle10gDialect</property>



          <!-- SQL dialect -->

          <mapping resource="com/sanpaolo/cibaudit/util/model/AuditLogOp.hbm.xml"/>

                <mapping resource="com/sanpaolo/cibaudit/util/model/StgAuditRevBdgAt.hbm.xml"/>

                <mapping resource="com/sanpaolo/cibaudit/util/model/StgAuditRevBdgPt.hbm.xml"/>

                <mapping resource="com/sanpaolo/cibaudit/util/model/StgAuditRetCons.hbm.xml"/>

                <mapping resource="com/sanpaolo/cibaudit/util/model/ViewAudit.hbm.xml"/>

                <mapping resource="com/sanpaolo/cibaudit/util/model/ScrAuditRetCons.hbm.xml"/>

                <mapping resource="com/sanpaolo/cibaudit/util/model/ScrAuditRevBdgAt.hbm.xml"/>

                <mapping resource="com/sanpaolo/cibaudit/util/model/ScrAuditRevBdgPt.hbm.xml"/>





           </session-factory>

           </hibernate-configuration>





           ******************************************************************************************

           Then this is the jboss-web.xml where I set resource-ref with the same name I used in

           the web.xml. Is it correct?





           "jboss-web.xml"

           <?xml version="1.0" encoding="UTF-8"?>

           <jboss-web>

                <resource-ref>

              <res-ref-name>ccib0Data</res-ref-name>

              <res-type>javax.sql.DataSource</res-type>

              <jndi-name>ccib0Data</jndi-name>

          </resource-ref>

          </jboss-web>





          ***********************************************************************************

          The context.xml contains the resource link name which is the same used in the

          web.xml. Is it correct?



          "context.xml"

          <!-- The contents of this file will be loaded for each web application -->

          <Context antiJARLocking="true" antiResourceLocking="true">





          <!-- Default set of monitored resources -->

          <WatchedResource>WEB-INF/web.xml</WatchedResource>



           <ResourceLink name="ccib0Data"

                  global="ccib0Data"

                  type="javax.sql.DataSource"/>



           </Context>





           *********************************************************************************************





           Then I've created a Datasource using the admin-console of JBOSS 5.1.

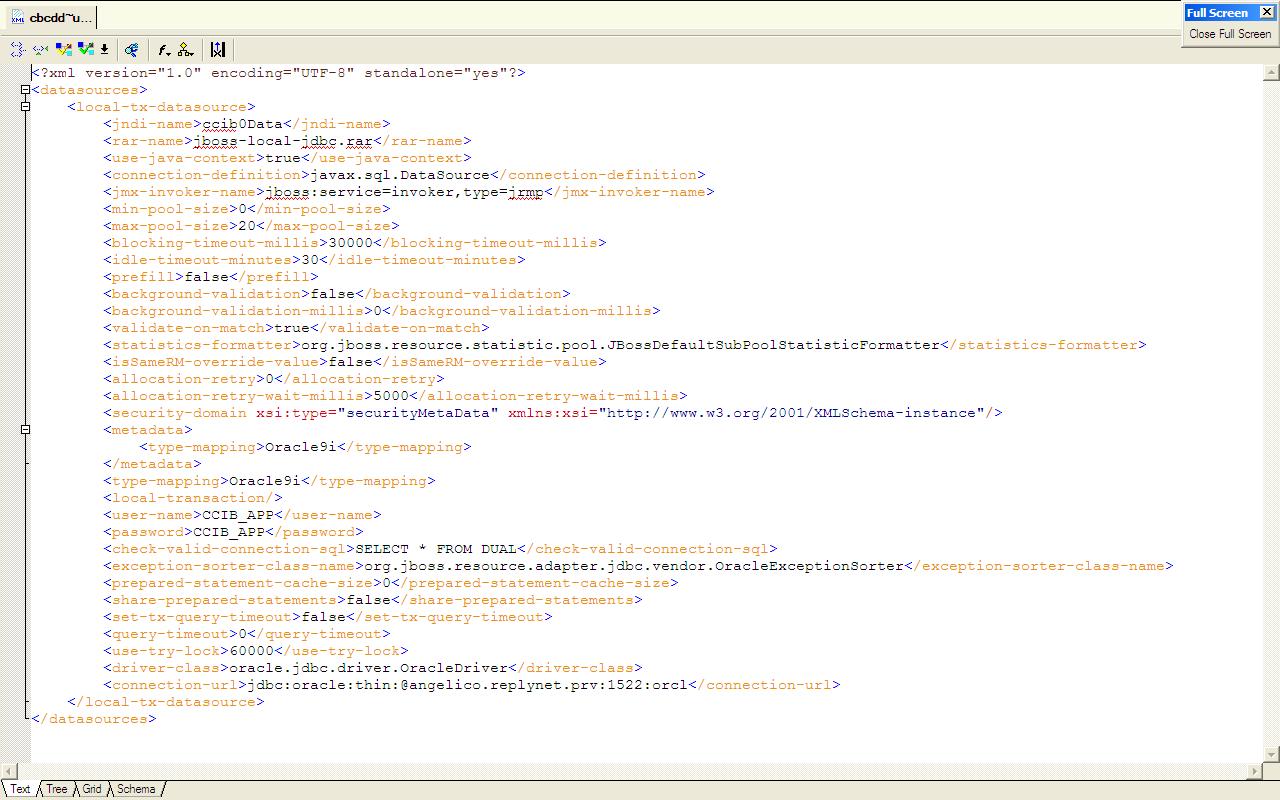

           This is the file of my datasource in JBOSS directory:

             "ccib0Data-ds.xml"





          <?xml version="1.0" encoding="UTF-8" standalone="yes"?>

          <datasources>

          <local-tx-datasource>

              <jndi-name>ccib0Data</jndi-name>

              <rar-name>jboss-local-jdbc.rar</rar-name>

              <use-java-context>true</use-java-context>

              <connection-definition>javax.sql.DataSource</connection-definition>

              <jmx-invoker-name>jboss:service=invoker,type=jrmp</jmx-invoker-name>

              <min-pool-size>0</min-pool-size>

              <max-pool-size>20</max-pool-size>

              <blocking-timeout-millis>30000</blocking-timeout-millis>

              <idle-timeout-minutes>30</idle-timeout-minutes>

              <prefill>false</prefill>

              <background-validation>false</background-validation>

              <background-validation-millis>0</background-validation-millis>

              <validate-on-match>true</validate-on-match>

              <statistics-formatter>org.jboss.resource.statistic.pool.JBossDefaultSubPoolStatisticFormatter</statistics-formatter>

              <isSameRM-override-value>false</isSameRM-override-value>

              <allocation-retry>0</allocation-retry>

              <allocation-retry-wait-millis>5000</allocation-retry-wait-millis>

              <security-domain xsi:type="securityMetaData" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"/>

              <metadata>

                  <type-mapping>Oracle9i</type-mapping>

              </metadata>

              <type-mapping>Oracle9i</type-mapping>

              <local-transaction/>

              <user-name>CCIB_APP</user-name>

              <password>CCIB_APP</password>

              <check-valid-connection-sql>SELECT * FROM DUAL</check-valid-connection-sql>

              <exception-sorter-class-name>org.jboss.resource.adapter.jdbc.vendor.OracleExceptionSorter</exception-sorter-class-name>

              <prepared-statement-cache-size>0</prepared-statement-cache-size>

              <share-prepared-statements>false</share-prepared-statements>

              <set-tx-query-timeout>false</set-tx-query-timeout>

              <query-timeout>0</query-timeout>

              <use-try-lock>60000</use-try-lock>

              <driver-class>oracle.jdbc.driver.OracleDriver</driver-class>

              <connection-url>jdbc:oracle:thin:@angelico.replynet.prv:1522:orcl</connection-url>

          </local-tx-datasource>

          </datasources>





          **************************************************************************************************





           After creating all these files I tried to deploy the application in JBOSS 5.1 and all is well.

           When I try to access to my application using http://localhost:8080/CibAudit I have this error:







           18:17:23,985 INFO  [STDOUT] 2012 04 18  18:17:23,985 | FATAL | DatasourceConnect

           ionProvider: - Could not find datasource: ccib0Data

           javax.naming.NameNotFoundException: ccib0Data not bound

              at org.jnp.server.NamingServer.getBinding(NamingServer.java:771)

              at org.jnp.server.NamingServer.getBinding(NamingServer.java:779)

              at org.jnp.server.NamingServer.getObject(NamingServer.java:785)

              at org.jnp.server.NamingServer.lookup(NamingServer.java:443)

              at org.jnp.interfaces.NamingContext.lookup(NamingContext.java:726)

              at org.jnp.interfaces.NamingContext.lookup(NamingContext.java:686)

              at javax.naming.InitialContext.lookup(InitialContext.java:392)

              at org.hibernate.connection.DatasourceConnectionProvider.configure(Datas

              ourceConnectionProvider.java:52)

              at org.hibernate.connection.ConnectionProviderFactory.newConnectionProvi

           der(ConnectionProviderFactory.java:124)

              at org.hibernate.connection.ConnectionProviderFactory.newConnectionProvi

           der(ConnectionProviderFactory.java:56)

              at org.hibernate.cfg.SettingsFactory.createConnectionProvider(SettingsFa

           ctory.java:414)

              at org.hibernate.cfg.SettingsFactory.buildSettings(SettingsFactory.java:

            62)

              at org.hibernate.cfg.Configuration.buildSettings(Configuration.java:2073

            )

              at org.hibernate.cfg.Configuration.buildSessionFactory(Configuration.jav

            a:1298)

            *********************************************************************************





           Could someone help me?

           I don't know where is the error and if the error is in some of my project's file or in the creation of the datasource in       JBOSS.





           Thanks a lot,

            Francesco

        • 1. Re: JBOSS JNDI ERROR: Could not find datasource: ccib0Data
          Phani Reddy V Newbie

          Try changing the hibernate.datasource parameter in hibernate.cfg.xml to the below:



          java:/comp/env/jdbc/ccib0Data



          Because, the error is thrown from Hibernate. Please check it and let us know if any issue.

          • 2. Re: JBOSS JNDI ERROR: Could not find datasource: ccib0Data
            Francesco Bonavia Newbie

            Thanks Phani,



            thanks a lot for the answer. The first problem was solved but now when I try to access to DB executing a query I have this error:



            09:50:30,962 WARN  [AbstractManagedObjectPopulator] Cannot create String name from non-Simple property:

            ManagedProperty{JNDIName,JNDIName,metaType=SimpleMetaTyp

            e:java.lang.String}, value=null

            09:50:30,977 WARN  [AbstractManagedObjectPopulator] Cannot create String name fr

            om non-Simple property: ManagedProperty{JNDIName,JNDIName,metaType=SimpleMetaTyp

            e:java.lang.String}, value=null

            09:50:57,496 INFO  [STDOUT] 2012 04 19  09:50:57,496 |  WARN | common: - before

            property list

            09:50:57,496 INFO  [STDOUT] 2012 04 19  09:50:57,496 |  WARN | query: - START QU

            ERY CONFIGURATION PARAMETERS

            09:50:57,496 INFO  [STDOUT] 2012 04 19  09:50:57,496 |  WARN | util: - before to

            join the DB

            09:50:58,137 INFO  [STDOUT] 2012 04 19  09:50:58,137 |  WARN | UserSuppliedConne

            ctionProvider: - No connection properties specified - the user must supply JDBC

            connections

            09:50:58,903 INFO  [STDOUT] 2012 04 19  09:50:58,903 |  WARN | util: - joined to

            DB

            09:50:58,996 ERROR [STDERR] java.lang.UnsupportedOperationException: The user mu

            st supply a JDBC connection



            This is my "ConfigProperties.java" where I ask for the properties stored in database

            ************************************************************************

            Query query = new Query();

                              logger.warn("before property list");

                              mapPropertyFromDb = query.listPropertiesMap();

                              logger.warn("after property list");

            ************************************************************************



            Then this is my "Query.java" where I query the database to give me the properties:

            ***********************************************************************************

            public Map<String, String> listPropertiesMap() {



                                logger.warn("START QUERY CONFIGURATION PARAMETERS");

                                Map<String, String> mapResult = new HashMap();

                                Session session = HibernateUtil.getSessionFactory().getCurrentSession();

                                session.beginTransaction();

                                List result = session.createSQLQuery("select property,valuep from T_AUDIT_PROPERTY").list();

                                session.getTransaction().commit();

                                Object row[]=new Object[2];

                                for ( Iterator i=result.iterator();i.hasNext();){

                                    row=(Object[])i.next();

                                    mapResult.put(row[0].toString() , row[1].toString());

                                  }

                                logger.warn("END QUERY CONFIGURATION PARAMETERS");



                                return mapResult;



                      }

            **************************************************************************



            And this is my "HibernateUtil.java" where I try to join to my database:

            ****************************************************************************

            public class HibernateUtil {





                      static final Logger logger = Logger.getLogger(HibernateUtil.class.getPackage().getName());





              private static final SessionFactory sessionFactory;





                static {

                    try {



                    // Create the SessionFactory from hibernate.cfg.xml

                              logger.warn("before to join the DB");

                              //sessionFactory = new Configuration().configure().buildSessionFactory();

                              sessionFactory = new Configuration().configure("hibernate.cfg.xml").buildSessionFactory();

                              logger.warn("joined to DB");

                    } catch (Throwable ex) {

                        // Make sure you log the exception, as it might be swallowed

                        System.err.println("Initial SessionFactory creation failed." + ex);

                        throw new ExceptionInInitializerError(ex);

                    }

                }





                public static SessionFactory getSessionFactory() {

                    return sessionFactory;

                }





            }

            **********************************************************************************************



            In your opinion the error is in my java class or is some other configuration

            that are not correct?



            Thanks again

            Regards,

            Francesco

            • 4. Re: JBOSS JNDI ERROR: Could not find datasource: ccib0Data
              Francesco Bonavia Newbie

              Dear Phani,



              this is my new hibernate.cfg.xml after your indication:



              "hibernate.cfg.xml":

              ************************************************************************************

              <?xml version='1.0' encoding='utf-8'?>

              <!DOCTYPE hibernate-configuration PUBLIC

                "-//Hibernate/Hibernate Configuration DTD 3.0//EN"

                "http://hibernate.sourceforge.net/hibernate-configuration-3.0.dtd">





              <hibernate-configuration>



                  <session-factory>



                        <property name="hibernate.connection.datasource">java:/comp/env/jdbc/ccib0Data</property>



                  <property name="hibernate.transaction.factory_class">org.hibernate.transaction.JTATransactionFactory</property>

                        <property name="hibernate.transaction.manager_lookup_class">org.hibernate.transaction.JBossTransactionManagerLookup</property>



                  <!--

                  <property name="hibernate.connection.driver_class">oracle.jdbc.OracleDriver</property>

                        <property name="hibernate.connection.url">jdbc:oracle:thin:@angelico.replynet.prv:1522:orcl</property>

                        <property name="hibernate.connection.url">jdbc:oracle:thin:@dbTCCIB0.sede.corp.sanpaoloimi.com:1806:TCCIB0</property>

                        <property name="hibernate.connection.username">CCIB_APP</property>

                  <property name="hibernate.connection.password">CCIB_APP</property>

                  -->



                  <property name="hibernate.current_session_context_class">org.hibernate.context.ThreadLocalSessionContext</property>



                  <property name="hibernate.jdbc.batch_size">30</property>

                  <property name="hibernate.show_sql">false</property>



                  <property name="hibernate.dialect">org.hibernate.dialect.Oracle10gDialect</property>



                  <!-- configuration pool via c3p0

                  <property name="hibernate.connection.provider_class">org.hibernate.connection.C3P0ConnectionProvider</property>

                        <property name="hibernate.c3p0.acquire_increment">1</property>

                  <property name="hibernate.c3p0.idle_test_period">3000</property>

                  <property name="hibernate.c3p0.max_size">5</property>

                  <property name="hibernate.c3p0.max_statements">0</property>

                  <property name="hibernate.c3p0.min_size">1</property>

                  <property name="hibernate.c3p0.timeout">6000</property>

                   -->



                  <!-- SQL dialect -->

                  <mapping resource="com/sanpaolo/cibaudit/util/model/AuditLogOp.hbm.xml"/>

                        <mapping resource="com/sanpaolo/cibaudit/util/model/StgAuditRevBdgAt.hbm.xml"/>

                        <mapping resource="com/sanpaolo/cibaudit/util/model/StgAuditRevBdgPt.hbm.xml"/>

                        <mapping resource="com/sanpaolo/cibaudit/util/model/StgAuditRetCons.hbm.xml"/>

                        <mapping resource="com/sanpaolo/cibaudit/util/model/ViewAudit.hbm.xml"/>

                        <mapping resource="com/sanpaolo/cibaudit/util/model/ScrAuditRetCons.hbm.xml"/>

                        <mapping resource="com/sanpaolo/cibaudit/util/model/ScrAuditRevBdgAt.hbm.xml"/>

                        <mapping resource="com/sanpaolo/cibaudit/util/model/ScrAuditRevBdgPt.hbm.xml"/>





                   </session-factory>

              </hibernate-configuration>

              *********************************************************************************************************



              But now I have again this error:



              **********************************************************************************************************

              10:16:31,536 INFO  [DeployHandler] Begin start, [vfszip:/C:/Programmi/jboss-5.1.

              0.GA/server/default/deploy/CibAudit.war/]

              10:17:00,371 INFO  [TomcatDeployment] deploy, ctxPath=/CibAudit

              10:17:00,778 INFO  [DeployHandler] End start, [vfszip:/C:/Programmi/jboss-5.1.0.

              GA/server/default/deploy/CibAudit.war/]

              10:17:01,059 WARN  [AbstractManagedObjectPopulator] Cannot create String name fr

              om non-Simple property: ManagedProperty{JNDIName,JNDIName,metaType=SimpleMetaTyp

              e:java.lang.String}, value=null

              10:17:01,059 WARN  [AbstractManagedObjectPopulator] Cannot create String name fr

              om non-Simple property: ManagedProperty{JNDIName,JNDIName,metaType=SimpleMetaTyp

              e:java.lang.String}, value=null

              10:17:25,425 INFO  [STDOUT] 2012 04 19  10:17:25,425 |  WARN | common: - before

              property list

              10:17:25,425 INFO  [STDOUT] 2012 04 19  10:17:25,425 |  WARN | query: - START QU

              ERY CONFIGURATION PARAMETERS

              10:17:25,425 INFO  [STDOUT] 2012 04 19  10:17:25,425 |  WARN | util: - before to

              join the DB

              10:17:26,097 INFO  [STDOUT] 2012 04 19  10:17:26,097 | FATAL | DatasourceConnect

              ionProvider: - Could not find datasource: java:/comp/env/jdbc/ccib0Data

              javax.naming.NameNotFoundException: jdbc not bound

                      at org.jnp.server.NamingServer.getBinding(NamingServer.java:771)

                      at org.jnp.server.NamingServer.getBinding(NamingServer.java:779)

                      at org.jnp.server.NamingServer.getObject(NamingServer.java:785)

                      at org.jnp.server.NamingServer.lookup(NamingServer.java:396)

                      at org.jnp.server.NamingServer.lookup(NamingServer.java:399)

                      at org.jnp.interfaces.NamingContext.lookup(NamingContext.java:726)

                      at org.jnp.interfaces.NamingContext.lookup(NamingContext.java:833)

                      at org.jnp.interfaces.NamingContext.lookup(NamingContext.java:686)

                      at javax.naming.InitialContext.lookup(InitialContext.java:392)

                      at org.hibernate.connection.DatasourceConnectionProvider.configure(Datas

              ourceConnectionProvider.java:52)

                      at org.hibernate.connection.ConnectionProviderFactory.newConnectionProvi

              der(ConnectionProviderFactory.java:124)

                      at org.hibernate.connection.ConnectionProviderFactory.newConnectionProvi

              der(ConnectionProviderFactory.java:56)

                      at org.hibernate.cfg.SettingsFactory.createConnectionProvider(SettingsFa

              ctory.java:414)

                      at org.hibernate.cfg.SettingsFactory.buildSettings(SettingsFactory.java:

              62)

                      at org.hibernate.cfg.Configuration.buildSettings(Configuration.java:2073

              )

                      at org.hibernate.cfg.Configuration.buildSessionFactory(Configuration.jav

              a:1298)

                      at com.sanpaolo.cibaudit.util.HibernateUtil.<clinit>(HibernateUtil.java:

              20)

                      at com.sanpaolo.cibaudit.util.query.Query.listPropertiesMap(Query.java:2

              99)

                      at com.sanpaolo.cibaudit.controller.common.ConfigProperties.<clinit>(Con

              figProperties.java:30)

              ***********************************************************************************************



              Any ideas?



              Thanks a lot,

              Francesco

              • 5. Re: JBOSS JNDI ERROR: Could not find datasource: ccib0Data
                Phani Reddy V Newbie

                Francesco, I did completely replicated your scenario in my box. Found few changes which should fix your problem.



                1. Inside your jboss-web.xml change <jndi-name> value to java:ccib0Data
                2. Change hibernate-cfg.xml to <property name="hibernate.connection.datasource">java:comp/env/ccib0Data</property>
                3. I didn't had any thing on context.xml but you could try it (optional)



                Please let me know if that works.

                • 6. Re: JBOSS JNDI ERROR: Could not find datasource: ccib0Data
                  Francesco Bonavia Newbie

                  Dear Phani,



                  I've done all the modify you've told me, but I still have the problem.



                  *********************************************************************************************

                  14:48:17,705 INFO  [STDOUT] 2012 04 19  14:48:17,705 |  WARN | util: - before to

                  join the DB

                  14:48:18,330 INFO  [STDOUT] 2012 04 19  14:48:18,330 | FATAL | DatasourceConnect

                  ionProvider: - Could not find datasource: java:comp/env/ccib0Data

                  javax.naming.NamingException: Could not dereference object [Root exception is ja

                  vax.naming.NameNotFoundException: ccib0Data not bound]

                          at org.jnp.interfaces.NamingContext.resolveLink(NamingContext.java:1352)





                          at org.jnp.interfaces.NamingContext.lookup(NamingContext.java:817)

                          at org.jnp.interfaces.NamingContext.lookup(NamingContext.java:833)

                          at org.jnp.interfaces.NamingContext.lookup(NamingContext.java:686)

                  **************************************************************************************************

                  I've done a screenshot of my Eclipse Project to check if all the files are in the correct directory:













                  Could you send me your files so I can check with mine ?

                  My email address is: f.bonavia@reply.it



                  Thanks a lot

                  Francesco

                  • 7. Re: JBOSS JNDI ERROR: Could not find datasource: ccib0Data
                    Phani Reddy V Newbie

                    I have sent an email.Please take a look.

                    • 8. Re: JBOSS JNDI ERROR: Could not find datasource: ccib0Data
                      Francesco Bonavia Newbie

                      The problem is solved.

                      I was using the oracle driver classed12.jar and that's wrong.



                      The correct oracle driver is: ojdbc14.jar



                      Then this is the log of the application:



                      **********************************************************************************************

                      13:25:54,112 WARN  [query] START QUERY CONFIGURATION PARAMETERS

                      13:25:54,128 WARN  [util] before to join the DB

                      13:25:54,128 INFO  [Configuration] configuring from resource: hibernate-cfg.xml

                      13:25:54,128 INFO  [Configuration] Configuration resource: hibernate-cfg.xml

                      13:25:54,565 INFO  [Configuration] Configured SessionFactory: null

                      13:25:54,565 INFO  [NamingHelper] JNDI InitialContext properties:{}

                      13:25:54,612 INFO  [DatasourceConnectionProvider] Using datasource: java:comp/en

                      v/ccib0Data

                      13:25:55,128 INFO  [SettingsFactory] RDBMS: Oracle, version: Oracle Database 10g

                      Enterprise Edition Release 10.2.0.3.0 - Production

                      With the Partitioning, OLAP and Data Mining options

                      13:25:55,128 INFO  [SettingsFactory] JDBC driver: Oracle JDBC driver, version: 1

                      0.2.0.3.0

                      13:25:55,128 INFO  [Dialect] Using dialect: org.hibernate.dialect.Oracle10gDiale

                      ct

                      13:25:55,128 INFO  [TransactionFactoryFactory] Using default transaction strateg

                      y (direct JDBC transactions)

                      13:25:55,128 INFO  [TransactionManagerLookupFactory] No TransactionManagerLookup

                      configured (in JTA environment, use of read-write or transactional second-level

                      cache is not recommended)

                      13:25:55,128 INFO  [SettingsFactory] Automatic flush during beforeCompletion():

                      disabled

                      13:25:55,128 INFO  [SettingsFactory] Automatic session close at end of transacti

                      on: disabled

                      13:25:55,128 INFO  [SettingsFactory] JDBC batch size: 30

                      13:25:55,128 INFO  [SettingsFactory] JDBC batch updates for versioned data: disa

                      bled

                      13:25:55,128 INFO  [SettingsFactory] Scrollable result sets: enabled

                      13:25:55,128 INFO  [SettingsFactory] JDBC3 getGeneratedKeys(): disabled

                      13:25:55,128 INFO  [SettingsFactory] Connection release mode: auto

                      13:25:55,128 INFO  [SettingsFactory] Default batch fetch size: 1

                      13:25:55,128 INFO  [SettingsFactory] Generate SQL with comments: disabled

                      13:25:55,128 INFO  [SettingsFactory] Order SQL updates by primary key: disabled

                      13:25:55,128 INFO  [SettingsFactory] Order SQL inserts for batching: disabled

                      13:25:55,128 INFO  [SettingsFactory] Query translator: org.hibernate.hql.ast.AST

                      QueryTranslatorFactory

                      13:25:55,128 INFO  [ASTQueryTranslatorFactory] Using ASTQueryTranslatorFactory

                      13:25:55,128 INFO  [SettingsFactory] Query language substitutions: {}

                      13:25:55,128 INFO  [SettingsFactory] JPA-QL strict compliance: disabled

                      13:25:55,128 INFO  [SettingsFactory] Second-level cache: enabled

                      13:25:55,128 INFO  [SettingsFactory] Query cache: disabled

                      13:25:55,128 INFO  [SettingsFactory] Cache region factory : org.hibernate.cache.

                      impl.NoCachingRegionFactory

                      13:25:55,128 INFO  [SettingsFactory] Optimize cache for minimal puts: disabled

                      13:25:55,128 INFO  [SettingsFactory] Structured second-level cache entries: disa

                      bled

                      13:25:55,128 INFO  [SettingsFactory] Statistics: disabled

                      13:25:55,128 INFO  [SettingsFactory] Deleted entity synthetic identifier rollbac

                      k: disabled

                      13:25:55,128 INFO  [SettingsFactory] Default entity-mode: pojo

                      13:25:55,128 INFO  [SettingsFactory] Named query checking : enabled

                      13:25:55,128 INFO  [SessionFactoryImpl] building session factory

                      13:25:55,128 INFO  [SessionFactoryObjectFactory] Not binding factory to JNDI, no

                      JNDI name configured

                      13:25:55,128 WARN  [util] joined to DB



                      *******************************************************************************************************



                      A special thanks to Phani for all the help



                      Regards,

                      Francesco

                      • 9. Re: JBOSS JNDI ERROR: Could not find datasource: ccib0Data
                        Phani Reddy V Newbie

                        You're welcome.Nice to hear it's working at the end.
