    Problem running HelloWorldJMSClient.java from Quickstarts

    Eugene Fridman Newbie

      I'm having a problem running a copy of HelloWorldJMSClient.java with WildFly8 JMS.  I followed the instructions, created users and a queue.  I run WildFly in a full standalone configuration but get the following error:



      May 22, 2014 10:57:29 AM org.xnio.Xnio <clinit>
      INFO
      : XNIO version 3.2.0.Final
      May 22, 2014 10:57:29 AM org.xnio.nio.NioXnio <clinit>
      INFO
      : XNIO NIO Implementation Version 3.2.0.Final
      May 22, 2014 10:57:30 AM org.jboss.remoting3.EndpointImpl <clinit>
      INFO
      : JBoss Remoting version (unknown)
      May 22, 2014 10:57:30 AM HelloWorldJMSClient main
      INFO
      : Attempting to acquire connection factory "jms/RemoteConnectionFactory"
      May 22, 2014 10:57:35 AM HelloWorldJMSClient main
      SEVERE
      : Failed to connect to any server. Servers tried: [http-remoting://127.0.0.1:8080
      (Operation failed with status WAITING after 5000 MILLISECONDS)]


      I do see the server active on //127.0.0.1:8080 and using administration console I can see the presence of JNDI-bound objects:





      Here's the proof that server is started in the full mode:





      When I run it under debugger I can see that the program acquires initial JNDI context and then fails on the very first lookup

      So it seems that the program that is expecting the server on //127.0.0.1:8080 does not see the server running on this very URL.

      I tried changing the URL to //localhost:8080 but it didn't make any difference.

      Here's servers output showing that server starts and seemingly successfully completes all the steps, including JMS (HornetQ) bindings:

      C:\WildFly8\wildfly-8.0.0.Final\bin\standalone.bat -c standalone-full.xml
      Calling "C:\WildFly8\wildfly-8.0.0.Final\bin\standalone.conf.bat"
      Setting JAVA property to "C:\Program Files\Java\jdk1.8.0_05\bin\java"
      Detected server admin port: 9990
      Detected server http port: 8080
      ===============================================================================


      JBoss Bootstrap Environment

        JBOSS_HOME
      : "C:\WildFly8\wildfly-8.0.0.Final"

        JAVA
      : "C:\Program Files\Java\jdk1.8.0_05\bin\java"

        JAVA_OPTS
      : "-XX:+UseCompressedOops -Dprogram.name=standalone.bat -Xms64M -Xmx512M -XX:MaxPermSize=256M -Djava.net.preferIPv4Stack=true -Djboss.modules.system.pkgs=org.jboss.byteman"

      ===============================================================================

      10:39:36,154 INFO  [org.jboss.modules] (main) JBoss Modules version 1.3.0.Final
      10:39:37,741 INFO  [org.jboss.msc] (main) JBoss MSC version 1.2.0.Final
      10:39:37,842 INFO  [org.jboss.as] (MSC service thread 1-6) JBAS015899: WildFly 8.0.0.Final "WildFly" starting
      10:39:42,278 INFO  [org.jboss.as.server] (Controller Boot Thread) JBAS015888: Creating http management service using socket-binding (management-http)
      10:39:42,328 INFO  [org.xnio] (MSC service thread 1-5) XNIO version 3.2.0.Final
      10:39:42,337 INFO  [org.xnio.nio] (MSC service thread 1-5) XNIO NIO Implementation Version 3.2.0.Final
      10:39:42,400 INFO  [org.jboss.as.clustering.infinispan] (ServerService Thread Pool -- 36) JBAS010280: Activating Infinispan subsystem.
      10:39:42,402 INFO  [org.jboss.as.naming] (ServerService Thread Pool -- 47) JBAS011800: Activating Naming Subsystem
      10:39:42,396 INFO  [org.jboss.as.security] (ServerService Thread Pool -- 52) JBAS013171: Activating Security Subsystem
      10:39:42,428 INFO  [org.jboss.as.jacorb] (ServerService Thread Pool -- 37) JBAS016300: Activating JacORB Subsystem
      10:39:42,454 INFO  [org.jboss.as.webservices] (ServerService Thread Pool -- 56) JBAS015537: Activating WebServices Extension
      10:39:42,523 INFO  [org.jboss.as.security] (MSC service thread 1-2) JBAS013170: Current PicketBox version=4.0.20.Final
      10:39:42,577 INFO  [org.jboss.as.jsf] (ServerService Thread Pool -- 43) JBAS012615: Activated the following JSF Implementations: [main]
      10:39:42,661 INFO  [org.jboss.as.naming] (MSC service thread 1-1) JBAS011802: Starting Naming Service
      10:39:42,666 INFO  [org.jboss.as.mail.extension] (MSC service thread 1-1) JBAS015400: Bound mail session [java:jboss/mail/Default]
      10:39:42,776 INFO  [org.wildfly.extension.undertow] (MSC service thread 1-1) JBAS017502: Undertow 1.0.0.Final starting
      10:39:42,776 INFO  [org.wildfly.extension.undertow] (ServerService Thread Pool -- 55) JBAS017502: Undertow 1.0.0.Final starting
      10:39:42,819 INFO  [org.jboss.as.connector.logging] (MSC service thread 1-1) JBAS010408: Starting JCA Subsystem (IronJacamar 1.1.3.Final)
      10:39:43,053 INFO  [org.jboss.remoting] (MSC service thread 1-4) JBoss Remoting version 4.0.0.Final
      10:39:43,319 INFO  [org.jboss.as.connector.subsystems.datasources] (ServerService Thread Pool -- 31) JBAS010403: Deploying JDBC-compliant driver class org.h2.Driver (version 1.3)
      10:39:43,355 INFO  [org.jboss.as.connector.deployers.jdbc] (MSC service thread 1-6) JBAS010417: Started Driver service with driver-name = h2
      10:39:43,646 INFO  [org.wildfly.extension.undertow] (ServerService Thread Pool -- 55) JBAS017527: Creating file handler for path C:\WildFly8\wildfly-8.0.0.Final/welcome-content
      10:39:43,707 INFO  [org.wildfly.extension.undertow] (MSC service thread 1-8) JBAS017525: Started server default-server.
      10:39:43,715 INFO  [org.wildfly.extension.undertow] (MSC service thread 1-8) JBAS017531: Host default-host starting
      10:39:43,874 INFO  [org.wildfly.extension.undertow] (MSC service thread 1-5) JBAS017519: Undertow HTTP listener default listening on /127.0.0.1:8080
      10:39:44,130 WARN  [org.jboss.as.messaging] (MSC service thread 1-4) JBAS011600: AIO wasn't located on this platform, it will fall back to using pure Java NIO. If your platform is Linux, install LibAIO to enable the AIO journal
      10:39:44,377 INFO  [org.jboss.as.server.deployment.scanner] (MSC service thread 1-8) JBAS015012: Started FileSystemDeploymentService for directory C:\WildFly8\wildfly-8.0.0.Final\standalone\deployments
      10:39:44,581 INFO  [org.hornetq.core.server] (ServerService Thread Pool -- 58) HQ221000: live server is starting with configuration HornetQ Configuration (clustered=false,backup=false,sharedStore=true,journalDirectory=C:\WildFly8\wildfly-8.0.0.Final\standalone\data\messagingjournal,bindingsDirectory=C:\WildFly8\wildfly-8.0.0.Final\standalone\data\messagingbindings,largeMessagesDirectory=C:\WildFly8\wildfly-8.0.0.Final\standalone\data\messaginglargemessages,pagingDirectory=C:\WildFly8\wildfly-8.0.0.Final\standalone\data\messagingpaging)
      10:39:44,582 INFO  [org.hornetq.core.server] (ServerService Thread Pool -- 58) HQ221006: Waiting to obtain live lock
      10:39:44,729 INFO  [org.hornetq.core.server] (ServerService Thread Pool -- 58) HQ221013: Using NIO Journal
      10:39:44,748 WARN  [jacorb.codeset] (MSC service thread 1-2) Warning - unknown codeset (Cp1252) - defaulting to ISO-8859-1
      10:39:45,033 INFO  [io.netty.util.internal.PlatformDependent] (ServerService Thread Pool -- 58) Your platform does not provide complete low-level API for accessing direct buffers reliably. Unless explicitly requested, heap buffer will always be preferred to avoid potential system unstability.
      10:39:45,049 INFO  [org.jboss.as.jacorb] (MSC service thread 1-2) JBAS016330: CORBA ORB Service started
      10:39:45,161 INFO  [org.hornetq.core.server] (ServerService Thread Pool -- 58) HQ221043: Adding protocol support CORE
      10:39:45,286 INFO  [org.hornetq.core.server] (ServerService Thread Pool -- 58) HQ221043: Adding protocol support AMQP
      10:39:45,299 INFO  [org.jboss.as.connector.subsystems.datasources] (MSC service thread 1-4) JBAS010400: Bound data source [java:jboss/datasources/ExampleDS]
      10:39:45,305 INFO  [org.hornetq.core.server] (ServerService Thread Pool -- 58) HQ221043: Adding protocol support STOMP
      10:39:45,391 INFO  [org.hornetq.core.server] (ServerService Thread Pool -- 58) HQ221034: Waiting to obtain live lock
      10:39:45,392 INFO  [org.hornetq.core.server] (ServerService Thread Pool -- 58) HQ221035: Live Server Obtained live lock
      10:39:45,472 INFO  [org.jboss.as.jacorb] (MSC service thread 1-3) JBAS016328: CORBA Naming Service started
      10:39:45,890 INFO  [org.jboss.ws.common.management] (MSC service thread 1-5) JBWS022052: Starting JBoss Web Services - Stack CXF Server 4.2.3.Final
      Connected to server
      10:39:45,958 INFO  [org.jboss.messaging] (MSC service thread 1-4) JBAS011615: Registered HTTP upgrade for hornetq-remoting protocol handled by http-acceptor-throughput acceptor
      10:39:45,961 INFO  [org.jboss.messaging] (MSC service thread 1-1) JBAS011615: Registered HTTP upgrade for hornetq-remoting protocol handled by http-acceptor acceptor
      10:39:46,254 INFO  [org.hornetq.core.server] (ServerService Thread Pool -- 58) HQ221007: Server is now live
      10:39:46,254 INFO  [org.hornetq.core.server] (ServerService Thread Pool -- 58) HQ221001: HornetQ Server version 2.4.1.Final (Fast Hornet, 124) [c42f74fe-ddcf-11e3-9d67-07b9140cdda2]
      10:39:46,272 INFO  [org.hornetq.core.server] (ServerService Thread Pool -- 58) HQ221003: trying to deploy queue jms.queue.testQueue
      10:39:46,278 INFO  [org.jboss.as.messaging] (ServerService Thread Pool -- 58) JBAS011601: Bound messaging object to jndi name queue/test
      10:39:46,279 INFO  [org.jboss.as.messaging] (ServerService Thread Pool -- 58) JBAS011601: Bound messaging object to jndi name java:jboss/exported/jms/queue/test
      10:39:46,300 INFO  [org.jboss.as.messaging] (ServerService Thread Pool -- 60) JBAS011601: Bound messaging object to jndi name java:/ConnectionFactory
      10:39:46,301 INFO  [org.jboss.as.messaging] (ServerService Thread Pool -- 59) JBAS011601: Bound messaging object to jndi name java:jboss/exported/jms/RemoteConnectionFactory
      10:39:46,424 INFO  [org.jboss.as.connector.deployment] (MSC service thread 1-2) JBAS010406: Registered connection factory java:/JmsXA
      10:39:46,515 INFO  [org.hornetq.ra] (MSC service thread 1-2) HornetQ resource adaptor started
      10:39:46,516 INFO  [org.jboss.as.connector.services.resourceadapters.ResourceAdapterActivatorService$ResourceAdapterActivator] (MSC service thread 1-2) IJ020002: Deployed: file://RaActivatorhornetq-ra
      10:39:46,518 INFO  [org.jboss.as.connector.deployment] (MSC service thread 1-2) JBAS010401: Bound JCA ConnectionFactory [java:/JmsXA]
      10:39:46,518 INFO  [org.jboss.as.messaging] (MSC service thread 1-8) JBAS011601: Bound messaging object to jndi name java:jboss/DefaultJMSConnectionFactory
      10:39:46,636 INFO  [org.jboss.as] (Controller Boot Thread) JBAS015961: Http management interface listening on http://127.0.0.1:9990/management
      10:39:46,637 INFO  [org.jboss.as] (Controller Boot Thread) JBAS015951: Admin console listening on http://127.0.0.1:9990
      10:39:46,637 INFO  [org.jboss.as] (Controller Boot Thread) JBAS015874: WildFly 8.0.0.Final "WildFly" started in 12523ms - Started 216 of 264 services (90 services are lazy, passive or on-demand)
      10:40:35,457 INFO  [org.jboss.ejb.client] (XNIO-1 task-3) JBoss EJB Client version 2.0.0.Final

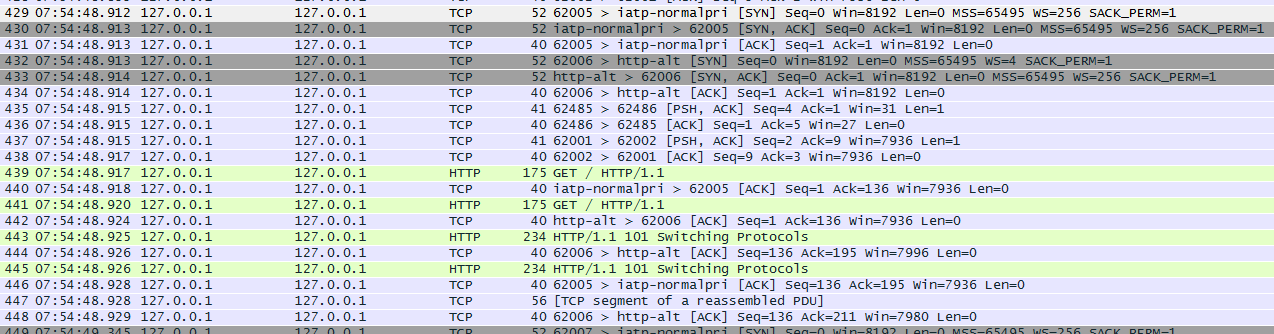

      I'm at a loss here.  I tried to capture the localhost traffic and I can see the conversation about upgrading the protocol:


      While I realize that since multitude of people run this process successfully there must be something wrong on my side, I'm out of ideas how to pinpoint the problem.



      Any suggestions?
