    [UI problem] Set SOAPContextMapper and SOAPMessageComposer

    tangblack
    tangblack Sep 27, 2012 3:59 AM

      I am using SwitchYard 0.6 night build version.



      There are two sthings strange when setting customer SOAPContextMapper and SOAPMessageComposer.

      • SOAPMessageComposer can't be presented in the text field but it is really in switchyard.xml.
      • contextMapper in switchyard.xml is little strange and it causes SwitchYard can't do context mapping correctly.



      Is it a bug?



      Thanks in advance!



      <contextMapper xsi:type="soap:Con...>


I think it should be

<soap:contextMapper xsi:type="soap:Con...>

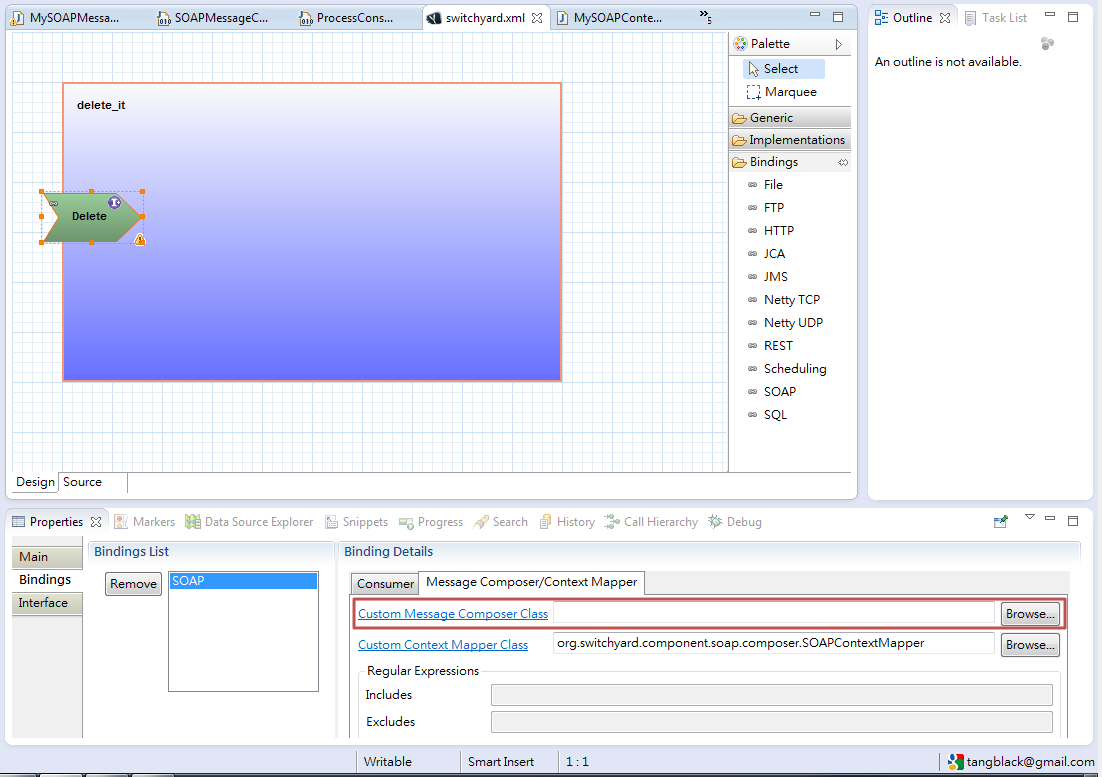

      switchyard UI.png



      <?xml version="1.0" encoding="UTF-8"?>
<switchyard xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="urn:switchyard-config:switchyard:1.0" xmlns:sca="http://docs.oasis-open.org/ns/opencsa/sca/200912" xmlns:soap="urn:switchyard-component-soap:config:1.0" name="delete_it" targetNamespace="urn:com.example.switchyard:delete_it:0.0.1-SNAPSHOT">
  <sca:composite name="delete_it" targetNamespace="urn:com.example.switchyard:delete_it:0.0.1-SNAPSHOT">
    <sca:service name="Delete">
      <sca:interface.java interface="com.example.switchyard.delete_it.Delete"/>
      <soap:binding.soap>
        <contextMapper xsi:type="soap:ContextMapperType" class="org.switchyard.component.soap.composer.SOAPContextMapper"/>  <!-- This should be soap:contextMapper not contextMapper -->
        <soap:messageComposer class="org.switchyard.component.common.composer.MessageComposer"/> <!-- messageComposer here!! -->
        <soap:wsdl>META-INF/Delete.wsdl</soap:wsdl>
        <soap:wsdlPort>DeletePort</soap:wsdlPort>
        <soap:contextPath>delete_it</soap:contextPath>
      </soap:binding.soap>
    </sca:service>
  </sca:composite>
</switchyard>
