Filter in collapsibleSubTable

[kineas]

Hi,

I need to put filters (and sort if possible) in a collapsibleSubTable but I can't make it works perfectly.

My environment :

- Richfaces 4.3.4.Final

- Server Tomcat 6.0.36

First, here is my code without filters :

<rich:dataTable id="rolesAppliDataTableId" value="#{utilmanBean.listRoles}" var="role" rows="10">
    <f:facet name="header">
        <rich:columnGroup>
            <rich:column style="width:30%">
                <h:outputText value="#{AM['label.role']}"/>
            </rich:column>
            <rich:column style="width:40%">
                <h:outputText value="#{AM['label.description']}"/>
            </rich:column>
            <rich:column style="width:15%">
                <h:outputText value="#{AM['label.area']}"/>
            </rich:column>
            <rich:column style="width:15%">
                <h:outputText value="#{AM['label.privilege']}"/>
            </rich:column>
        </rich:columnGroup>
    </f:facet>

    <rich:collapsibleSubTable id="rolesAppliSubDataTableId" value="#{role.listAccesses}" var="access" rowKeyVar="rowKey" onrowclick="#{rich:element('selectRoleAppliId')}.click()">
        <rich:column rowspan="#{role.nbAccessesInList}" rendered="#{rowKey eq 0}" styleClass="cursorClass">
            <h:outputText value="#{role.name}"/>
            <!-- handle clic -->
            <a4j:commandButton style="display:none" id="selectRoleAppliId" action="#{utilmanController.selectRole}" render="panelAppliId" execute="@this" status="void">
                <f:setPropertyActionListener target="#{utilmanBean.currentRole}" value="#{role}"/>
            </a4j:commandButton>
        </rich:column>
        <rich:column rowspan="#{role.nbAccessesInList}" rendered="#{rowKey eq 0}" styleClass="cursorClass">
            <h:outputText value="#{role.description}"/>
        </rich:column>
        <rich:column styleClass="cursorClass">
            <h:outputText value="#{access.area}"/>
        </rich:column>
        <rich:column styleClass="cursorClass">
            <h:outputText value="#{access.privilege.name}"/>
        </rich:column>
    </rich:collapsibleSubTable>
</rich:dataTable>
<rich:dataScroller for="rolesAppliDataTableId" renderIfSinglePage="false" boundaryControls="#{commonBean.hide}" fastControls="#{commonBean.hide}" status="void" style="width:100%" render="rolesAppliDataTableId"/>

It works as intended and I got this :

Now I try to add filters for each columns. Here is my code :

<rich:dataTable id="rolesAppliDataTableId" value="#{utilmanBean.listRoles}" var="role" width="100%" rows="10">
    <f:facet name="header">
        <rich:columnGroup>
            <rich:column style="width:30%">
                <h:panelGrid width="100%">
                    <h:outputText value="#{AM['label.role']}"/>
                    <h:inputText value="#{commonBean.filterValues[1]}">
                        <a4j:ajax event="keyup" render="@body,rolesAppliDsId" status="void"/>
                    </h:inputText>
                </h:panelGrid>
            </rich:column>
            <rich:column style="width:40%">
                <h:panelGrid width="100%">
                    <h:outputText value="#{AM['label.description']}"/>
                    <h:inputText value="#{commonBean.filterValues[2]}">
                        <a4j:ajax event="keyup" render="@body,rolesAppliDsId" status="void"/>
                    </h:inputText>
                </h:panelGrid>
            </rich:column>
            <rich:column style="width:15%">
                <h:panelGrid width="100%">
                    <h:outputText value="#{AM['label.area']}"/>
                    <h:inputText value="#{commonBean.filterValues[3]}">
                        <a4j:ajax event="keyup" render="@body,rolesAppliDsId" status="void"/>
                    </h:inputText>
                </h:panelGrid>
            </rich:column>
            <rich:column style="width:15%">
                <h:panelGrid width="100%">
                    <h:outputText value="#{AM['label.privilege']}"/>
                    <h:inputText value="#{commonBean.filterValues[4]}">
                        <a4j:ajax event="keyup" render="@body,rolesAppliDsId" status="void"/>
                    </h:inputText>
                </h:panelGrid>
            </rich:column>
        </rich:columnGroup>
    </f:facet>

    <rich:collapsibleSubTable expanded="true" id="rolesAppliSubDataTableId" value="#{role.listAccesses}" var="access" rowKeyVar="rowKey" onrowclick="#{rich:element('selectRoleAppliId')}.click()">
        <rich:column filterExpression="#{fn:containsIgnoreCase(role.name,commonBean.filterValues[1])}" rowspan="#{role.nbAccessesInList}" rendered="#{rowKey eq 0}" styleClass="cursorClass">
            <h:outputText value="#{role.name}"/>
            <!-- handle clic -->
            <a4j:commandButton style="display:none" id="selectRoleAppliId" action="#{utilmanController.selectRole}" render="panelAppliId" execute="@this" status="void">
                <f:setPropertyActionListener target="#{utilmanBean.currentRole}" value="#{role}"/>
            </a4j:commandButton>
        </rich:column>
        <rich:column filterExpression="#{fn:containsIgnoreCase(role.description,commonBean.filterValues[2])}" rowspan="#{role.nbAccessesInList}" rendered="#{rowKey eq 0}" styleClass="cursorClass">
            <h:outputText value="#{role.description}"/>
        </rich:column>
        <rich:column styleClass="cursorClass" filterExpression="#{fn:containsIgnoreCase(access.area,commonBean.filterValues[3])}">
            <h:outputText value="#{access.area}"/>
        </rich:column>
        <rich:column styleClass="cursorClass" filterExpression="#{fn:containsIgnoreCase(access.privilege.name,commonBean.filterValues[4])}">
            <h:outputText value="#{access.privilege.name}"/>
        </rich:column>
    </rich:collapsibleSubTable>
</rich:dataTable>
<rich:dataScroller id="rolesAppliDsId" for="rolesAppliDataTableId" renderIfSinglePage="false" boundaryControls="#{commonBean.hide}" fastControls="#{commonBean.hide}" status="void" style="width:100%" render="rolesAppliDataTableId"/>

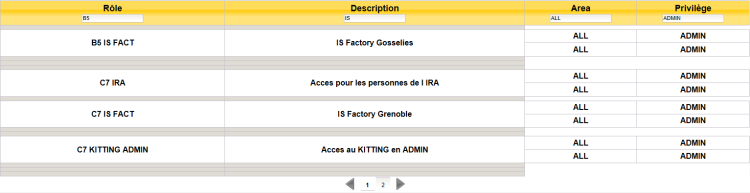

So, with this code, only the 3rd and 4th filter work, and I got some strange lines which appear :

Have you an idea of why it doesn't work and how I can make this work ?

Thanks

[kineas]

I finally succeed to make this work but the solution is kind complicated, and it's too bad there is no other way to deal with this issue !

If someone is interested by my solution, you can find it in the text file I attach to this post.

And if you have some better solution it would be great to let me know !

[bleathem]

Can you file a jira bug/feature-request asking for filtering support with collapsibleSubTable to be improved?

[kineas]

I try but it didn't work.

Not enough time to do it now, will try again tomorrow.

[martam]

I'm facing the same problem. Thank you for submitting your solution. As you said it is complicated, but I didn't find a better one... Have you reported the issue?
