    mod_cluster and wildfly8 can't identify port-offset

    sndaemon Newbie

      HI,

      I'm trying to setup a combination of mod_cluster-1.2.0.Final,wildfly-8.0.0.Alpha4 on Red Hat Enterprise Linux Server release 5.5 (Tikanga) ,but it seems like the new subsystem undertow1.0 can't identify port-offset.



      Versions of my softwares as follows:

      wildfly-8.0.0.Alpha4.tar.gz

      jdk-7u25-linux-i586.rpm

      mod_cluster-1.2.0.Final-linux2-x64-ssl.tar.gz



      I installed wildfly8 and mod_cluster  reference steps of https://docs.jboss.org/author/display/AS72/AS7+Cluster+Howto

      The cluster contains four servers,start up with domain mode:

      10.19.222.52:server1/server2

      10.19.222.53:server3/server4

      10.19.222.50:apache

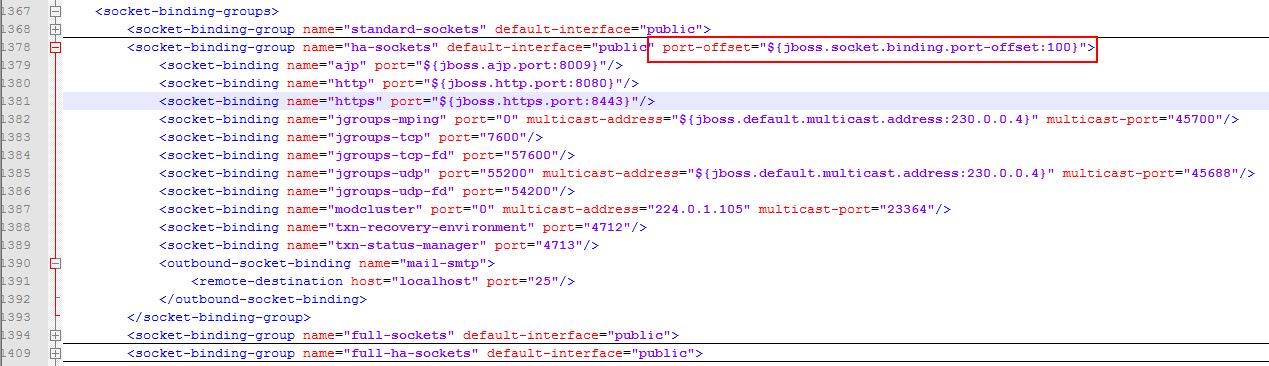

      The config files as attached:





      Search errorlog of Apache ,the proxy:AJP always acquired connection through initial AJP port(8009) define in domain.xml.

      The port-offset is 100 ,why it didn't detect the other port(8109) to server2 and server4?

      Any mistake i have made in the process?



      [Fri Sep 13 21:07:40 2013] [debug] mod_proxy_cluster.c(773): ajp_cping_cpong: Done

      [Fri Sep 13 21:07:40 2013] [debug] proxy_util.c(2029): proxy: ajp: has released connection for (10.19.222.52)

      [Fri Sep 13 21:07:43 2013] [debug] proxy_util.c(2011): proxy: ajp: has acquired connection for (10.19.222.53)

      [Fri Sep 13 21:07:43 2013] [debug] proxy_util.c(2067): proxy: connecting ajp://10.19.222.53:8009/ to 10.19.222.53:8009

      [Fri Sep 13 21:07:43 2013] [debug] proxy_util.c(2193): proxy: connected ajp://10.19.222.53:8009/ to 10.19.222.53:8009

      [Fri Sep 13 21:07:43 2013] [debug] mod_proxy_cluster.c(773): ajp_cping_cpong: Done

      [Fri Sep 13 21:07:43 2013] [debug] proxy_util.c(2029): proxy: ajp: has released connection for (10.19.222.53)

      [Fri Sep 13 21:07:45 2013] [debug] proxy_util.c(2011): proxy: ajp: has acquired connection for (10.19.222.52)

      [Fri Sep 13 21:07:45 2013] [debug] proxy_util.c(2067): proxy: connecting ajp://10.19.222.52:8009/ to 10.19.222.52:8009

      [Fri Sep 13 21:07:45 2013] [debug] proxy_util.c(2193): proxy: connected ajp://10.19.222.52:8009/ to 10.19.222.52:8009

      [Fri Sep 13 21:07:45 2013] [debug] mod_proxy_cluster.c(773): ajp_cping_cpong: Done

      [Fri Sep 13 21:07:45 2013] [debug] proxy_util.c(2029): proxy: ajp: has released connection for (10.19.222.52)

      [Fri Sep 13 21:07:46 2013] [debug] mod_manager.c(1667): manager_trans STATUS (/)

      [Fri Sep 13 21:07:46 2013] [debug] mod_manager.c(2323): manager_handler STATUS (/) processing: "JVMRoute=2644d861-0ead-352c-ba1e-619f1e1f25e8&Load=100"

      [Fri Sep 13 21:07:46 2013] [debug] mod_manager.c(1404): Processing STATUS

      [Fri Sep 13 21:07:46 2013] [debug] proxy_util.c(2011): proxy: ajp: has acquired connection for (10.19.222.53)

      [Fri Sep 13 21:07:46 2013] [debug] proxy_util.c(2067): proxy: connecting ajp://10.19.222.53:8009/ to 10.19.222.53:8009

      [Fri Sep 13 21:07:46 2013] [debug] proxy_util.c(2193): proxy: connected ajp://10.19.222.53:8009/ to 10.19.222.53:8009

      [Fri Sep 13 21:07:46 2013] [debug] mod_proxy_cluster.c(773): ajp_cping_cpong: Done

      [Fri Sep 13 21:07:46 2013] [debug] proxy_util.c(2029): proxy: ajp: has released connection for (10.19.222.53)

      [Fri Sep 13 21:07:46 2013] [debug] mod_manager.c(2366): manager_handler STATUS  OK

      [Fri Sep 13 21:07:47 2013] [debug] mod_manager.c(1667): manager_trans STATUS (/)

      [Fri Sep 13 21:07:47 2013] [debug] mod_manager.c(2323): manager_handler STATUS (/) processing: "JVMRoute=ea81701b-f847-34a8-9534-0ac5c489af90&Load=100"

      [Fri Sep 13 21:07:47 2013] [debug] mod_manager.c(1404): Processing STATUS

      [Fri Sep 13 21:07:47 2013] [debug] proxy_util.c(2011): proxy: ajp: has acquired connection for (10.19.222.52)

      [Fri Sep 13 21:07:47 2013] [debug] proxy_util.c(2067): proxy: connecting ajp://10.19.222.52:8009/ to 10.19.222.52:8009

      [Fri Sep 13 21:07:47 2013] [debug] proxy_util.c(2193): proxy: connected ajp://10.19.222.52:8009/ to 10.19.222.52:8009







      Please help,thanks!
