2 Replies Latest reply on Nov 1, 2017 3:17 AM by cute u

    the designer's max limition

    cute u Novice

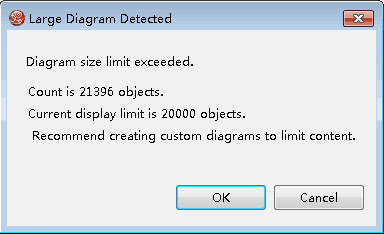

      when i create source model,the designer has issue,my metadata is include 500 tables, , what is the custom diagrams

        • 1. Re: the designer's max limition
          Barry LaFond Master

          The Eclipse Draw2D/GEF framework can be UI resource-intensive, so this prevents potential freezing of Eclipse.  You can do one of 2 things..



          1) Increase the display limit from the default 20000 via Window > Preferences > Teiid Designer > Diagrams page in the Model Size text entry

          • You may have performance issues displaying this large diagram



          2) Use a Custom Diagram

          • Create Custom Diagram by selecting model, right-click select New Child > Custom Diagram
          • Add specific tables to the diagram via drag and drop from Model Explorer or by selecting tables in explorer and right-click select Modeling > Add to Diagram
          • 2. Re: the designer's max limition
            cute u Novice

            Thank you Barry so much for quick response.



            Very much appreciated.
